DIY Naga Viper Pedal Clone - 11.5dBu
Pedal Capture
NAM
outmodedelectronics
6 months ago
Description

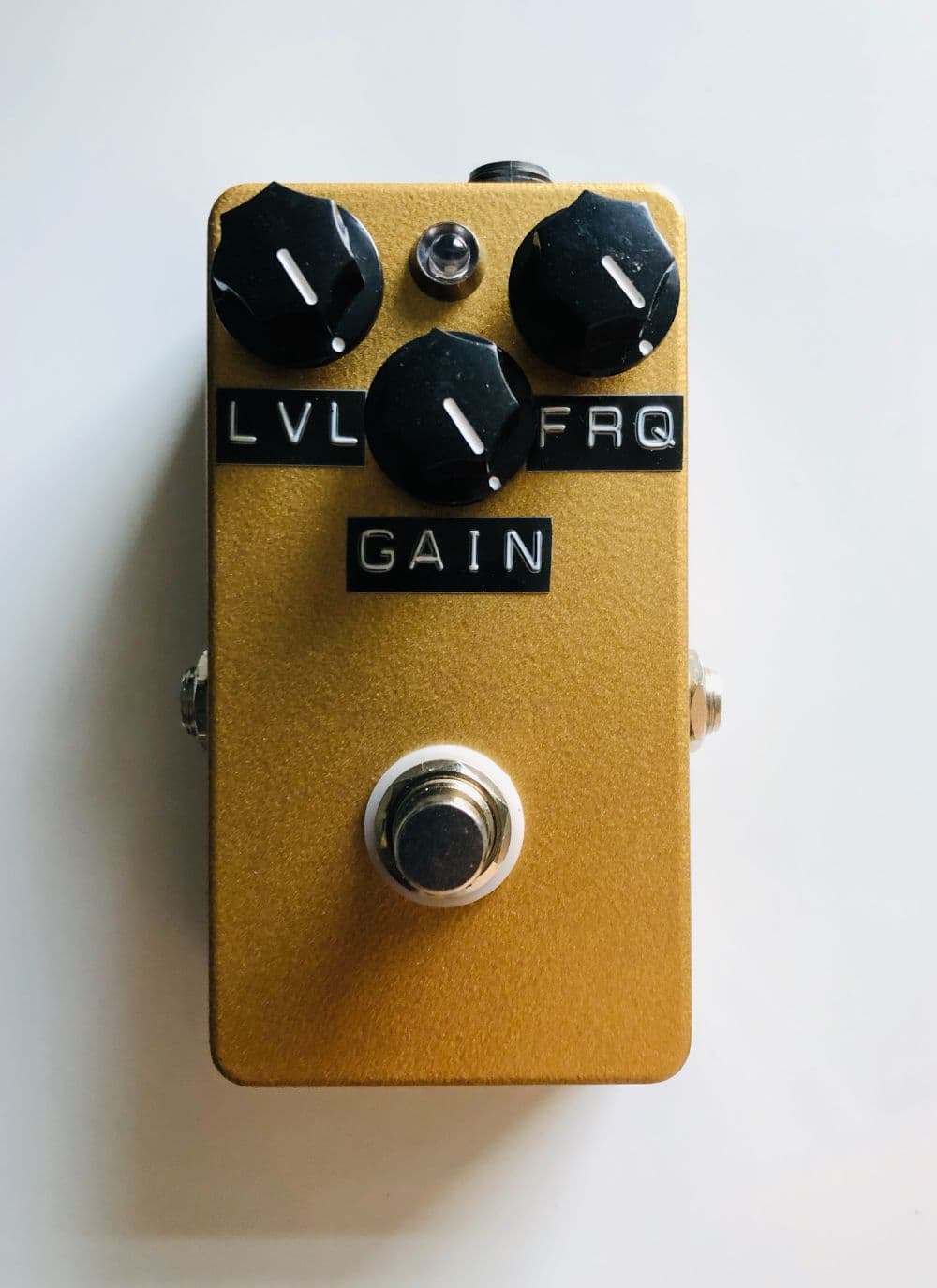

I built a vero board clone of a Catalonbread Naga Viper MKI boost pedal several years back. It’s based on a Rangemaster circuit, reworked for a 2N2222A silicon transistor with an extra control to turn it into a broad range boost. I’m providing 2 captures for boosting the Vox AC15C1 Normal Channel captures that I’m concurrently uploading. It’s rather hissy when cranked this way, but I was able to get tones reminiscent of other clips of Treble boosted Voxes. Signal Chain: DIYRE L2A Reamp - Naga Viper Clone - Suhr Reactive Load - Steinberg UR824 set at 11.5dB Knob order is as follows, with more understandable descriptions in parentheses: Boost (Output Level) - Heat (Gain) - Range (Tone)
Makes and Models
DIY Naga ViperPreview
Models
Each model captures the gear at specific settings.
Standard
Standard
License: T3K
Users may download and use the data file in software and publish the resulting outputs without royalties or restrictions. However, they may not upload, republish, or distribute the data file without the author's permission.
